- Pression Range from 40 mBar up to 900 mBar
- Very Versatile Design for Easy Installation
- Minimal Water Consumption
- Various Construction Materials to Fit all Needs
Enjoying a Wide Field Experience

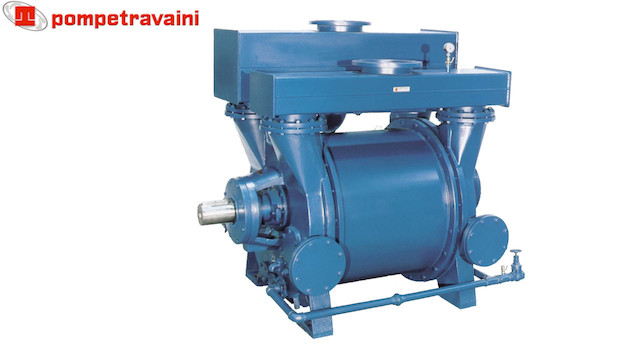

Pompetravaini’s experience in the manufacturing of liquid ring vacuum pumps acquired in the last 90 years has led to the creation of the new and improved single stage liquid ring pump series that offer optimum performance and reliability.
Range of Operation
The series Travaini TRVK is engineered for optimal efficiency in the operating range between 40 & 200 mbar, thanks to the special variable discharge
While the series Travaini TRSK will best perform in the range between 200 & 900 mbar.
Innovative Design
These pumps outperform the competitive pumps designed with cones and radial gas intake. They offer minimal water consumption, low operating speeds, over-designed bearing support and an innovative impeller design that assures an extremely quite and economical operation, extending its operating life even under severe conditions.
Versatile
The versatile design facilitates pump installations. A variety of piping solutions are given thanks to the choices to locate the pump manifolds at the top or at the side, the service liquid intake can be at either pump side.
Various Construction Materials
The standard material of construction for these pumps is cast iron with some of the components in carbon steel. Stainless steel AISI 316 wetted parts are also available upon request
- Travaini TRVK
- Travaini TRSK
Specifications
- Single stage vacuum pumps
- Flow from 1.100 up to 22.500m3/h
- Pressure 40 mBar to 200 mBar
- Motor from 9.8 to 550 kW
- Flanges DIN 150 up to DIN 500
Specifications
- Single stage vacuum pumps
- Air Flow from 2.400 up to 29.600m3/h
- Pressure from 200 mBar up to 800 mBar
- Motor from 45 up to 550 kW
- Flanges DIN 200 up to DIN 500
This information is provided courtesy of TravainiPompe SpA.
