The Most Reliable Eccentric Screw Pumps
And the Lowest Cost of Ownership!
Wangen Pumps provides standard progressive cavity pumps as well as special solutions
for the handling of difficult, viscous and abrasive media for virtually all industrial sectors
in almost all technical ranges of applications.
- Exceptionally robust construction
- Easy to maintain
- Equipped with cardan drive giving them exceptional reliability
- Modular design, offering many options for the most complex applications
- Lowest operating costs thanks to their reliability and the very reasonable price for spare parts
- Complete range of progressive cavity pumps
- Complete range of Twin Screw pumps
- For industrial, food, pharmaceutical applications

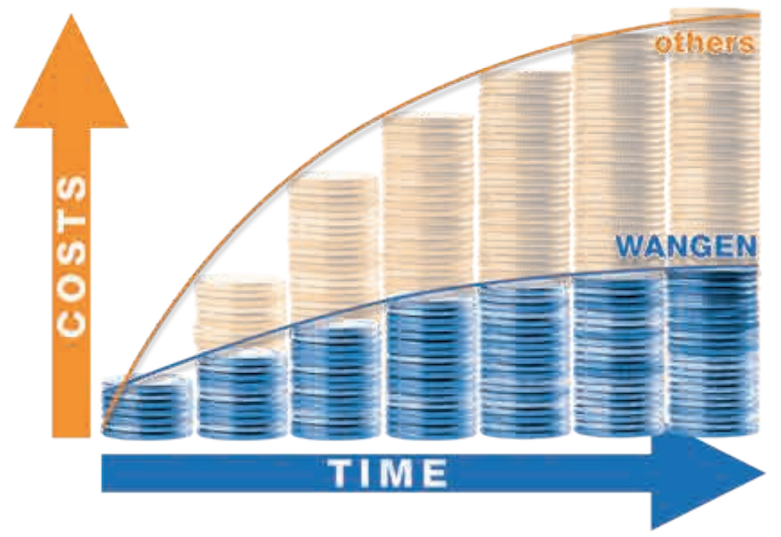

The Lowest Operating Costs
When purchasing a pump, we always recommend that you consider the operating costs and weigh them against the initial investment.
Maintenance costs, production downtime and energy account for most of the total costs over the life cycle of a pump.
Our philosophy offers a decisive advantage here: keep the lowest total life cycle costs possible.
Our approach is to keep the frequency of maintenance to a minimum by judiciously choosing the model and its nominal speed, a mistake often made to limit initial investments.
We achieve this goal by the robustness of the Wangen pumps, but also by the correct choice of the needed model, and most importantly, limit the frequency of maintenance and repairs to a minimum.
We also offer a spare part price strategy that is very competitive.
Each failure that is avoided on a production line saves not only the cost of spare parts, but also maintenance costs and production downtime.
Save by guarantying your peace of mind.
Easy and Fast Maintenance
In order to guarantee the highest availability of equipment, most of our customers prefer to maintain their pumps within their services.
Among their many strengths, the ease of inspection of the state of the components is certainly a very big advantage.
The pumps are studied in order to reduce the intervention time to a minimum.
Whether it’s replacing a stator, a rotor, a mechanical seal, the design of the pump makes it so much easier to maintain.
Applications
- Food Processing
- Breweries
- Chemicals
- Bio-methanation
- Water treatment
- Slaughterhouses
- Cement industry
- Sugar industry
- and many more…
SPS Pumps
Centre of Excellence Wangen Pumps
Know-how is the key to reliability.
As a Wangen Pumps Centre of Excellence, SPS Pumps offers you unrivalled expertise in progressive cavity pumps.
Our experienced engineers and technicians, trained by Wangen Pumps, analyse your specific needs and guide you towards the most effective solutions.
From choosing the pumps to installing them, and providing support whenever you need it, we’re with you every step of the way.
Thanks to our large stock of spare parts, we can ensure immediate availability and minimise downtime for your installations.
Whether you have a new installation project, need spare parts or assistance with the maintenance or troubleshooting of your Wangen pumps, contact our Centre of Excellence.
We will be delighted to meet you and offer you a tailor-made solution, adapted to your requirements and the complexity of your applications.
Wangen Pumps & SPS Pumps: the guarantee of a reliable, high-performance partnership.
Do you need any help?
Contact us today!
Call us on +32 2 657 23 53 or send us an e-mail to info@sps-pumps.com.

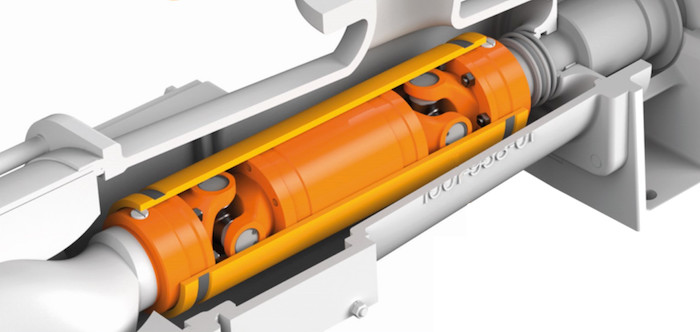

Wangen Pumps Cardan Joint
Wangen pumps are all equipped with cardan joint transmission.
Compared to all competitors who use conventional transmissions with joint and pins, the benefit is simply considerable.
The bearings are practically indestructible, whereas the traditional transmission joint is a wear part well known of the services of maintenance.
In addition, the cardan transfers a much higher power with much less loss.
All of these features lead to much less risk of breakage.
Why is Joint and Pin Transmission so fragile?

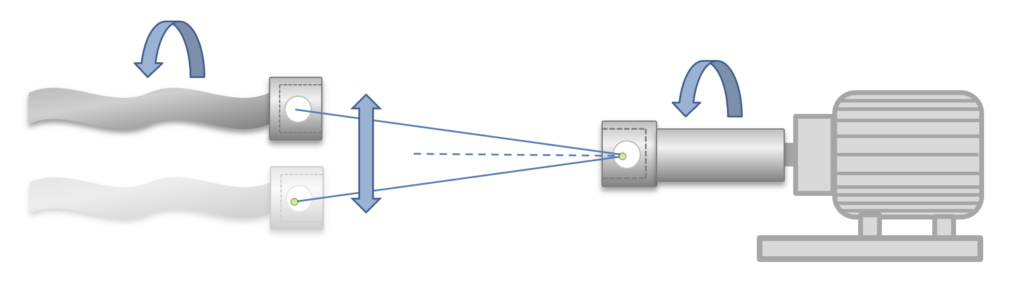

In progressive cavity pumps, the rotor turns on itself while moving vertically.
See here how a progressive cavity pump works.
The major brands of eccentric screw pumps often use a simple and inexpensive technique to turn the rotor: the pin joint.
The disadvantage of this type of transmission is that all the effort is concentrated at a single point on the pin.
Over time, as a result of wear and tear caused by movement, it becomes deformed, causing vibrations and weakening to the point of breaking.
In addition, deformation can lead to damage to the axle at the joint or to the rotor, which sometimes has to be replaced because the mounting is out of round.
This information is provided with the permission and courtesy of Wangen Pumpen GmbH.
