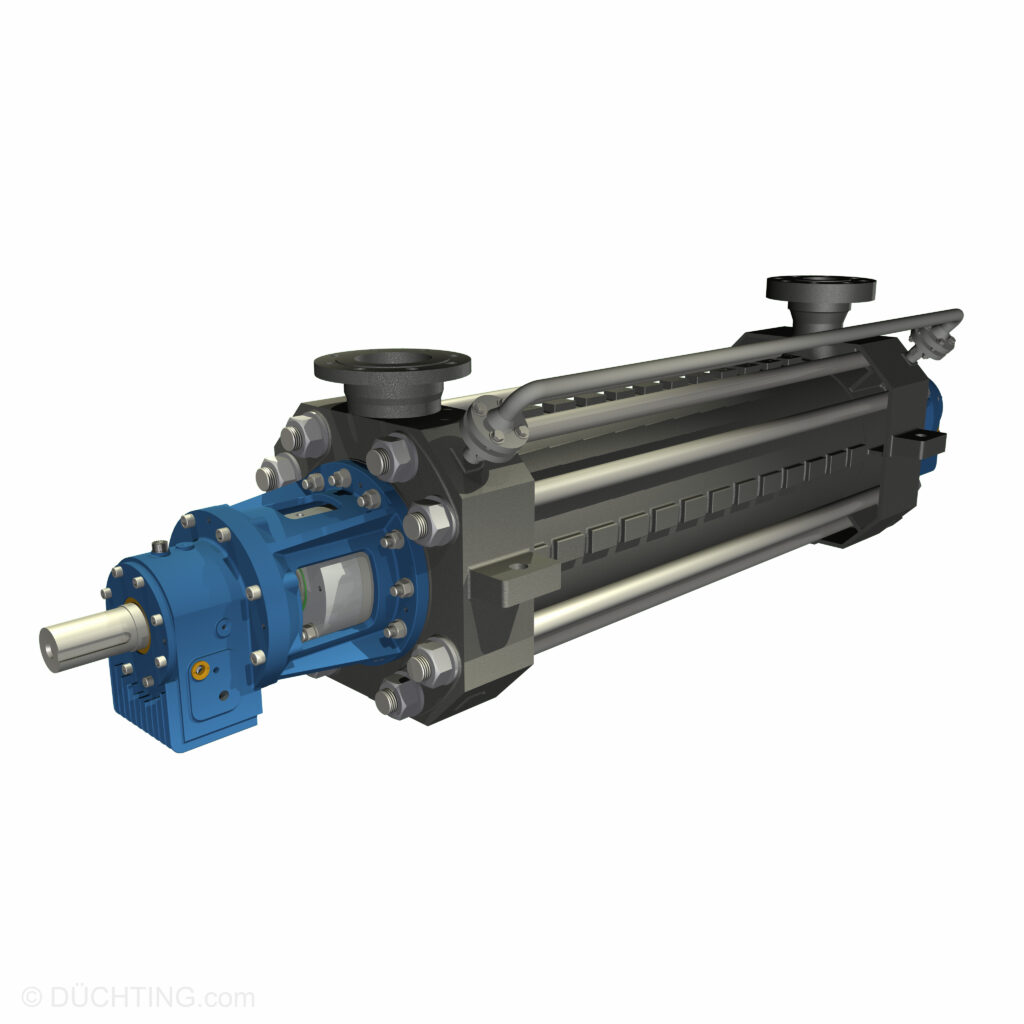

Düchting HPE Pumps

Advanced Design for Optimal Performance

The HPE pump incorporates wear rings made from a carbon fiber-filled PEEK composite material.
This allows for smaller clearances while maintaining exceptional reliability and efficiency.
An intermediate discharge flange is also available for added flexibility in piping configurations.

To ensure smooth operation and extended service life, the HPE pump offers a choice of anti-friction or sleeve bearings, with forced lubrication available as an option.
Jacket or shaft seal cooling can also be implemented to further enhance performance and longevity in high-temperature applications.

Tailor-Made Solutions for Specific Needs

Düchting understands that every application is unique and offers tailor-made HPE pump solutions to meet specific customer requirements.
Pump dimensions can be adapted, and shaft sealing can be achieved through a stuffing box or mechanical seal, providing flexibility in design and operation.
Axial thrust is effectively managed by a balance disk or balancing drum, minimising wear and tear on critical components.
All wear parts are designed for easy replacement, simplifying maintenance and reducing downtime.

Material Versatility for Diverse Environments

The Düchting HPE pump offers exceptional versatility in material selection. It can be manufactured in a wide range of metals, from cast iron to SUPER DUPLEX stainless steel. Düchting carefully selects materials based on the specific application, the pumped medium, and the operating conditions to ensure optimal performance, corrosion resistance, and longevity.

Compliance

The HPE pump is manufactured according to DIN and ASME standards as well as ATEX approved for use in potentially explosive atmospheres (upon request).

Key Advantages

• Multi-stage design for high-pressure applications.
• Centerline or foot-mounted casing options.
• Advanced wear rings for optimal efficiency.
• Choice of bearings and lubrication options.
• Cooling options for demanding environments.
• Tailor-made solutions to meet specific needs.
• Versatile material options for diverse applications.
• Manufactured according to ISO, DIN, and ASME standards.

Applications

• Oil & Gas applications (handling formation water)
• Pressure boosting systems in industrial processes
• Water supply or water injection
• Condensate production
• Boiler feed systems
• Hot water applications
• Descaling in steel plants

Technical Data

Pump size	DN 50 to DN 300
Maximum Pressure	250 bar
Maximum Flow	3 500 m3/h
Total Head	up to 2200 m
Rotating Speed	up to 3600 rpm

SPS Pumps is There to Help

At SPS Pumps, our Düchting Centre of Excellence is there for you, to help finding the most adequate pump for your application. Our expertise is second to none.

This information is provided with the permission and courtesy of Düchting Pumpen GmbH.
