Düchting WRV Pump
Vertical Versatility for Abrasive Liquids

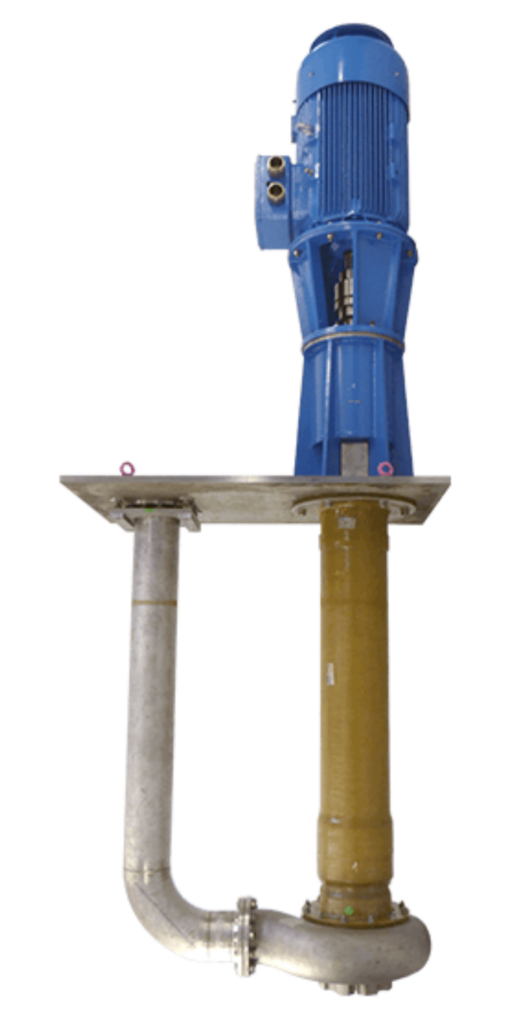

The Düchting WRV pump is a vertical, single-stage centrifugal pump designed for semi-submerged operation in challenging environments.
This end-suction slurry pump excels at handling abrasive and corrosive media, making it a robust solution for industries such as flue gas desulfurisation, construction, and mineral processing.
Adaptable Design for Diverse Applications
The WRV pump offers both closed and open impeller options to suit specific needs.
The impeller is securely fixed to the shaft with a key, allowing for reverse rotation, which is beneficial for operations like back-flushing.
A key feature is the re-adjustable inclined gap between the impeller and volute.
This enables on-site optimisation of efficiency and differential pressure, even after prolonged use, ensuring sustained performance and reduced operating costs.
Engineered for Reliability and Easy Maintenance
The WRV pump features a discharge flange that is radial for DN 32 to DN 250 and tangential for DN 300 and above.
It incorporates grease-lubricated, maintenance-free bearings for simplified upkeep and extended service life.
The pump’s design allows for customised immersion depth, providing flexibility in adapting to different installation requirements.
Simplified Maintenance and Long Service Life
The Düchting WRV pump is designed for easy maintenance and a long service life, even under demanding operating conditions. Its robust construction and thoughtful design minimise downtime and contribute to a lower total cost of ownership. The pump can be driven directly or via a belt, providing flexibility in installation and operation.
Compliance
ATEX approved for use in potentially explosive atmospheres upon request.
Key Advantages
- Handles abrasive and corrosive liquids with ease.
- Vertical, semi-submerged design for flexible installation.
- Optimised hydraulic design for sustained performance.
- Closed and open impeller options for versatility.
- Easy maintenance with re-adjustable gap and maintenance-free bearings.
- Suitable for a wide range of industrial applications.
Applications
- Flue gas desulfurisation (lime and gypsum slurries)
- Cleaning equipment for heat exchanger
- Construction industry (cement-water mixture)
- Fertilizer industry
- Potash industry (caustic potash solution, mixed salts & brine)
- Mineral processing and refining
Technical Data
| Pump size | DN 32 to DN 400 | |
| Maximum Pressure | 16 bar | |
| Maximum Flow | 4 000 m3/h | |
| Total Head | up to 120 m | |
| Rotating Speed | up to 3600 rpm |
SPS Pumps is There to Help
At SPS Pumps, our Düchting Centre of Excellence is there for you, to help finding the most adequate pump for your application. Our expertise is second to none.
This information is provided with the permission and courtesy of Düchting Pumpen GmbH.
